Fuel Light Truck Refrigeration Units

Snewang SR450/SR500/SR600 is an front Spilt machine, which is suitable for traditional fuel light truck with a volume of 16m³-28m³, and the temperature control range is -18℃~+15℃.

Snewang truck refrigeration unit SR450/SR500/SR600 is specially designed for 4.2m traditional oil-fired refrigerated truck, which suitable for box volumes of 16-28m³, with a temperature range of -18℃~+15℃. Among them, SR500/SR600 is specially designed for large cabinets. The product has the advantages of strong refrigeration capacity, lightweight design, accurate temperature control and double-drive power for the unit. Reliable compressors, control valves, and electrical components increase the service life and stability of the unit.


Technical parameter

modelSR450SR500SR600
Applicable volume16-20m³20-24m³24-28m³
Temperature range-18℃~+15℃-18℃~+15℃-18℃~+15℃
Refrigerating capacity0/+30468051006300
-18/+30245026203350
RefrigerantR404R404R404
Refrigerant charge2.2kg2.5kg2.6kg
CondenserSize mm (length * width * height)1063*475*3881283*530*4671283*530*467
Weight26.8532.4532.45
Condensing fanQuantity222
Total air volume4000m³/h4000m³/h4000m³/h
EvaporatorSize mm (length * width * height)1083*564*2071334*558*2101334*558*210
Weight24.527.827.8
Evaporation fanQuantity233
Total air volume1600m³/h2400m³/h2400m³/h

Note: Voltage is optional


Snewang Small Van Refrigeration Units Product Features

  1. The evaporator adopts aluminum alloy shell, high strength and corrosion resistance;
  2. The condenser shell is made of ABS thermoplastic environmentally-friendly material, environmentally-friendly and recyclable, bright appearance and good performance.
  3. The heat exchanger’s large volume and High-volume air supply, ensure efficient heat exchange capacity and sufficient cold delivery;
  4. The controller utilizes light-touch temperature and airflow adjustment, has a wide range of temperature adjustment (-25°C to +30°C);
  5. Industry-unique double sealing technology, system leakage is less than 3 g/year, long-term reliable operation without leakage;
  6. The electric control system has multi-channel detection, multiple protection to ensure that the control system is safe and reliable;
  7. U.S. AMP/Delphi waterproof connector, pulling force greater than 180N/M, sealing waterproof, eliminate poor contact, thicker wire, high temperature does not heat;
  8. Danish Danfoss (DANFOSS) control valve, precise control, low failure rate;
  9. After-sales service quick response, more than 380 service outlets nationwide for easy maintenance.

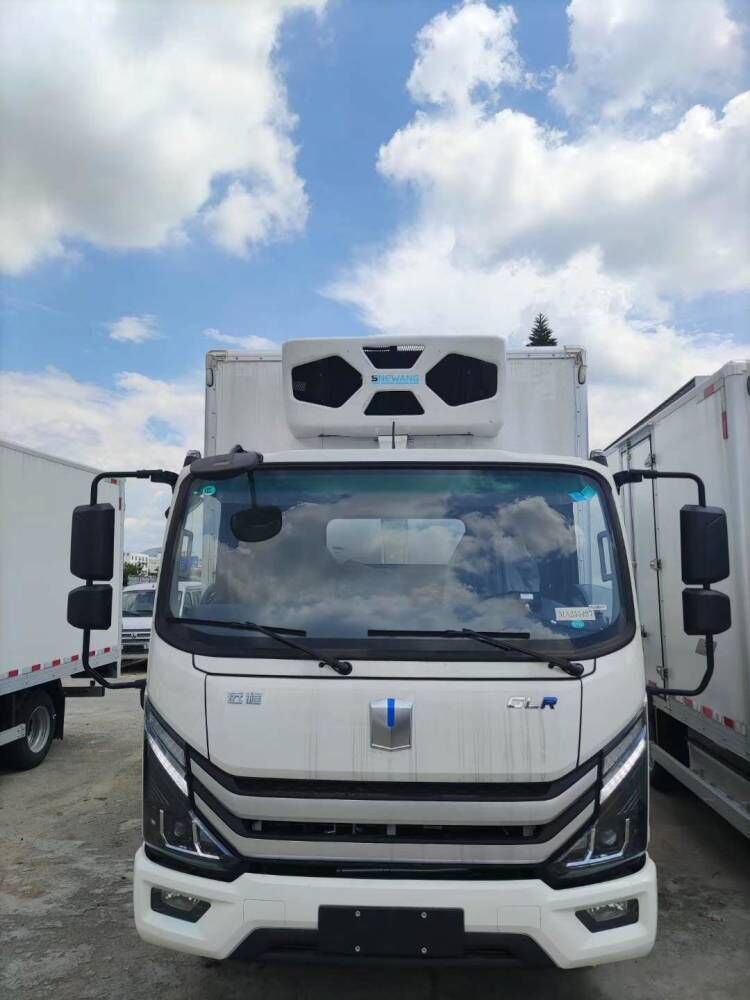

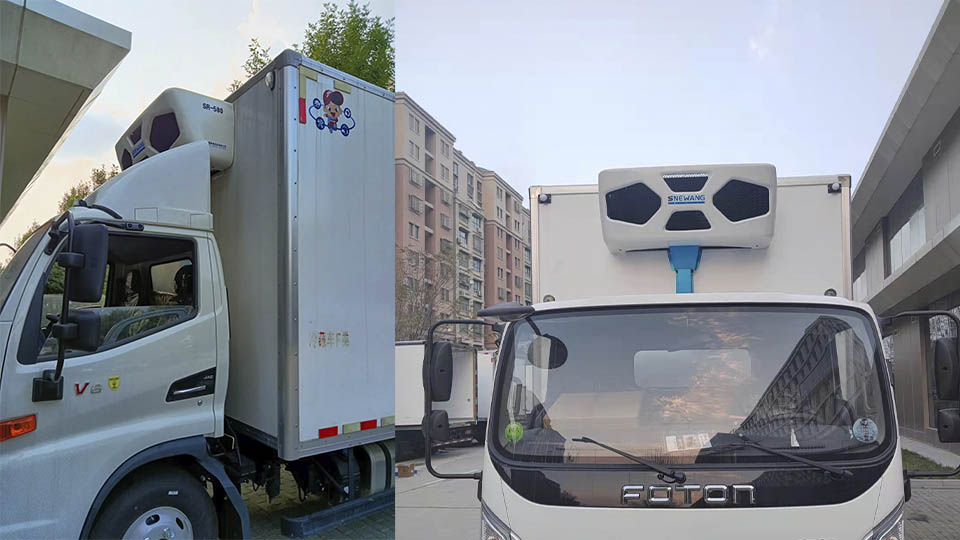

Application Cases of Truck Refrigeration Unit

REFRIGERATED DELIVERY TRUCKS-The MUST
