SR400 truck Refrigeration Units

Snewang SR400 is an front split installation, which is suitable for traditional fuel Micro truck with a volume of 12m³-16m³, and the temperature control range is -18℃~+15℃.

Snewang truck refrigeration unit SR400 is specially designed for traditional oil-fired refrigerated truck which box volumes of 45-58m³, with a temperature range of -18℃~+15℃. The product has the advantages of strong refrigeration capacity, lightweight design, accurate temperature control and double-drive power for the unit. Reliable compressors, control valves, and electrical components increase the service life and stability of the unit.

Technical parameter

model SR400
Applicable volume 12-16m³
Temperature range -18℃~+15℃
Refrigerating capacity 0/+30 4160
-18/+30 2230
Refrigerant R404
Refrigerant charge 2.0kg
Condenser Size mm (length * width * height) 1003*422*318
Weight 24
Condensing fan Quantity 2
Total air volume 3000m³/h
Evaporator Size mm (length * width * height) 1083*564*207
Weight 24.5
Evaporation fan Quantity 2
Total air volume 1600m³/h

Note: Voltage is optional(12V/24V)

Snewang Small Van Refrigeration Units Product Features

  1. The evaporator adopts aluminum alloy shell, high strength and corrosion resistance;
  2. The condenser shell is made of ABS thermoplastic environmentally-friendly material, environmentally-friendly and recyclable, bright appearance and good performance.
  3. The heat exchanger’s large volume and High-volume air supply, ensure efficient heat exchange capacity and sufficient cold delivery;
  4. The controller utilizes light-touch temperature and airflow adjustment, has a wide range of temperature adjustment (-25°C to +30°C);
  5. Industry-unique double sealing technology, system leakage is less than 3 g/year, long-term reliable operation without leakage;
  6. The electric control system has multi-channel detection, multiple protection to ensure that the control system is safe and reliable;
  7. U.S. AMP/Delphi waterproof connector, pulling force greater than 180N/M, sealing waterproof, eliminate poor contact, thicker wire, high temperature does not heat;
  8. Danish Danfoss (DANFOSS) control valve, precise control, low failure rate;
  9. After-sales service quick response, more than 380 service outlets nationwide for easy maintenance.

Application Cases of Truck Refrigeration Unit

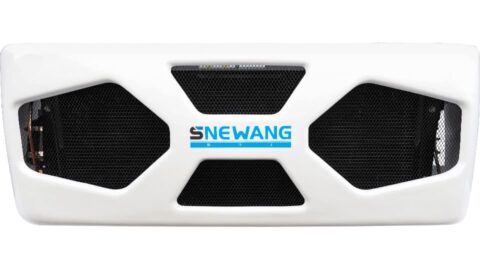

refrigeration unit condenser
