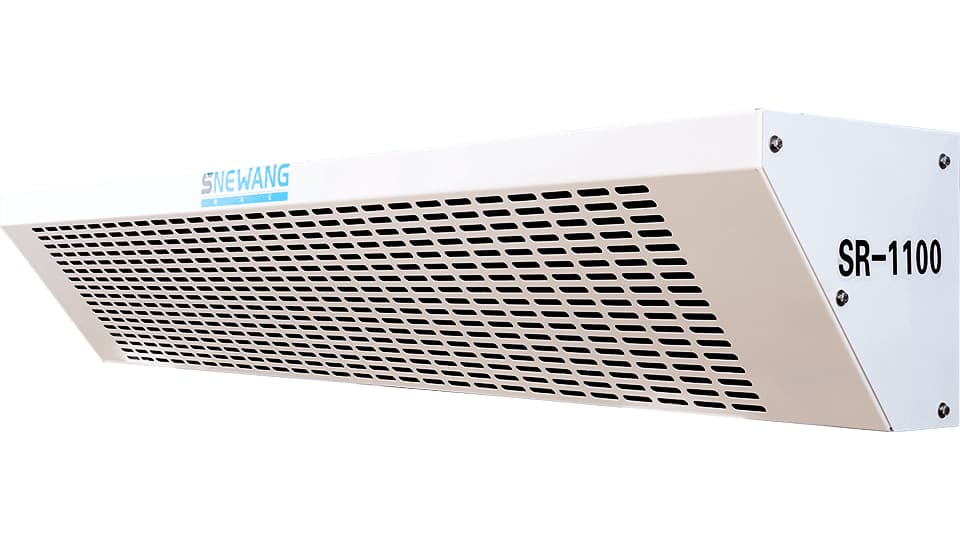

SR1100 truck Refrigeration Units

Snewang SR1100 is an front split installation, which is suitable for traditional fuel heavy truck with a volume of 45m³-58m³, and the temperature control range is -18℃~+15℃.

Snewang truck refrigeration unit SR1100 is specially designed for traditional oil-fired refrigerated truck, which suitable for box volumes of 45-58m³, with a temperature range of -18℃~+15℃. The product has the advantages of strong refrigeration capacity, lightweight design, accurate temperature control and double-drive power for the unit. Reliable compressor, control valves, and electrical components increase the service life and stability of the unit.

Technical parameter

model SR1100
Applicable volume 45-58m³
Temperature range -18~+15
Refrigerating capacity 0/+30 11500
-18/+30 6850
Refrigerant R404
Refrigerant charge 4.0kg
Condenser Size mm (length * width * height) 1915*354*337
Weight 55.4
Condensing fan Quantity 4
Total air volume 4000m³/h
Evaporator Size mm (length * width * height) 1797*632*327
Weight 50
Evaporation fan Quantity 4
Total air volume 5400m³/h


Snewang Small Van Refrigeration Units Product Features

  1. The evaporator adopts aluminum alloy shell, high strength and corrosion resistance;
  2. The condenser shell is made of ABS thermoplastic environmentally-friendly material, environmentally-friendly and recyclable, bright appearance and good performance.
  3. The heat exchanger’s large volume and High-volume air supply, ensure efficient heat exchange capacity and sufficient cold delivery;
  4. The controller utilizes light-touch temperature and airflow adjustment, has a wide range of temperature adjustment (-25°C to +30°C);
  5. Industry-unique double sealing technology, system leakage is less than 3 g/year, long-term reliable operation without leakage;
  6. The electric control system has multi-channel detection, multiple protection to ensure that the control system is safe and reliable;
  7. U.S. AMP/Delphi waterproof connector, pulling force greater than 180N/M, sealing waterproof, eliminate poor contact, thicker wire, high temperature does not heat;
  8. Danish Danfoss (DANFOSS) control valve, precise control, low failure rate;
  9. After-sales service quick response, more than 380 service outlets nationwide for easy maintenance.

Application Cases of Truck Refrigeration Unit




SR1000, SR1100
