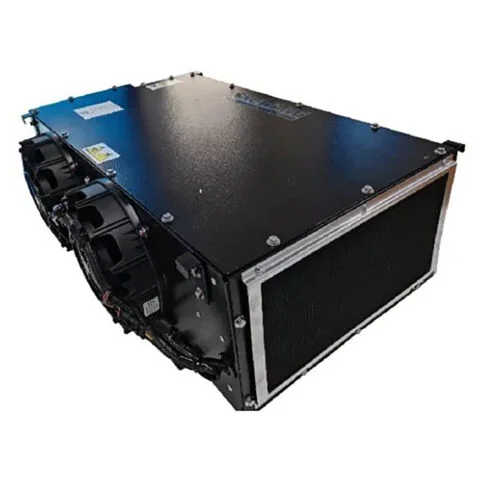

BTMS-100 Battery Thermal Management System

The unit adopts a self-developed PID variable frequency intelligent control model to more accurately control the inlet and outlet water temperatures

The control mode is divided into BMS control mode and automatic control mode.
● BMS control mode
The battery thermal management system fully obeys the instructions of the BMS, including working mode, cooling or heating power and the setting of antifreeze target temperature, which are controlled by the BMS by transmitting communication information.
●Automatic control mode.
The battery thermal management system according to the maximum and minimum temperatures, charging status and discharge status of the battery sent by the BMS. Automatically evaluating the operating mode, cooling or heating power and target temperature setting of the antifreeze.


BTMS-100 Technical parameter

Product model BTMS-100 Dimension L932*W602*H291mm
COP >2.4 Weight <55kg
Refrigerant R134a/R407c Interface specifications 25mm
High voltage range DC380-750V Heating PTC 14KW(Optional)
Low voltage DC24V(18-32V) DCDC 1KW
Antifreeze 50:50 water : ethylene glycol Expansion tank 4L
Water flow 32L/min@200Kpa Refrigeration capacity 10KW
Communication method CAN2.0 Minimum water inlet temperature 10
Control logic Operation mode + Target water temperature Condensing air volume,m³/h 4000
Noise <75dB(A) Water pump head, m 24
