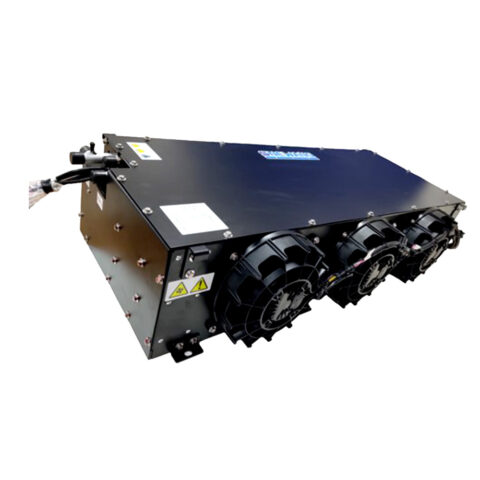

BTMS-080C Battery Thermal Management System

The unit adopts a self-developed PID variable frequency intelligent control model to ensure a more constant internal temperature of the battery.

The control mode is divided into BMS control mode and automatic control mode.
● BMS control mode
The battery thermal management system fully obeys the instructions of the BMS, including working mode, cooling or heating power and the setting of antifreeze target temperature, which are controlled by the BMS by transmitting communication information.
●Automatic control mode.
The battery thermal management system according to the maximum and minimum temperatures, charging status and discharge status of the battery sent by the BMS. Automatically evaluating the operating mode, cooling or heating power and target temperature setting of the antifreeze.


BTMS-080C Technical parameter

Product modelBTMS-080CDimensionL859*W572*H291mm
COP>2.4Weight<50kg
RefrigerantR134a/R407cInterface specifications25mm
High voltage rangeDC380-750VHeating PTC7KW(Optional)
Low voltageDC24V(18-32V)DCDC1KW
Antifreeze50:50 water : ethylene glycolExpansion tank4L
Water flow32L/min@200KpaRefrigeration capacity8KW
Communication methodCAN2.0Minimum water inlet temperature10
Control logicOperation mode + target water temperatureCondensing air volume,m³/h4000
Noise<75dB(A)Water pump head, m24
