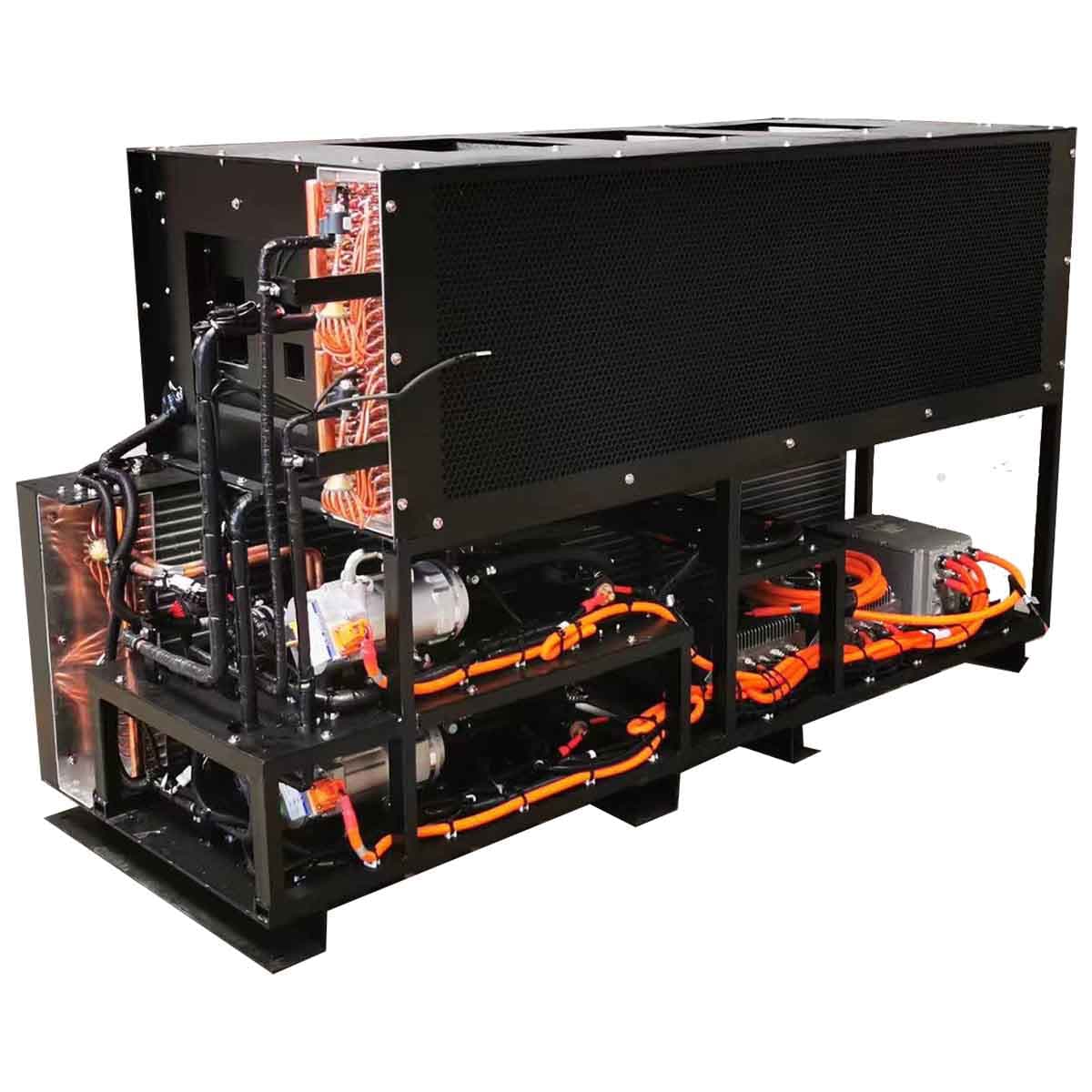

EZHS-08 Double decker bus air conditioner

Our EZHS-08 is a fully electric A/C system for high-end E double deck bus 10-12 meters, using the most up to date technologies and innovations.

Parameters
ltems: Specification:
Cooling capacity: 52000(Kcal/h)
Heating capacity:  50000(Kcal/h)
Condenser air flow: 12000(m³/h)
Evaporator air flow: 10000 (m3/h)
Fresh air: Without
Refrigerant type: R407C
Compressor oil: HAF68
Refrigerant filling volume: 3.5*2 (Kg) prefilled
Evaporator coil: Copper tube & alum fin
Condenser coil: Copper tube & alum fin
Power consumption when cooling: 14(KW)
Power consumption when heating: 13.5 (KW) (Not include PTC consumption)
PTC heater: 2*12.5(KW)
Condenser fan: 24V 5 pcs brushless
Evaporator blower: 24V 10 pcs brushless
Dimension (L*W*H) 2000*765*1187(cm)



Brand

SNEWANG

Model

EZHS-08
