For pure electric vehicle air conditioning system

Product features

  1. Lightweight design: The product adopts lightweight design and is more than 20kg lighter than other products in the industry.
  2. More energy-saving: the condensing fan, evaporation fan, and compressor are all intelligently controlled, saving more than 20% energy.
  3. More efficient: The refrigerant flow intelligent control system cools down quickly and is always in the high-efficiency range.
  4. More reliable: multiple protections for high and low pressure, exhaust temperature, overcurrent and overvoltage.
  5. Electrical safety: High-voltage protection grade IP67, multiple insulation protection to ensure electrical safety.
  6. Longer life: core components imported brushless fans, Danfoss valves, Inovance DC-DC, DC scroll compressors

They are all internationally renowned brands and are more reliable and have a longer lifespan.

  1. The CAN bus control system can communicate with the bus control system and can also realize remote monitoring, fault diagnosis and

software upgrade.




Parameters of A/C

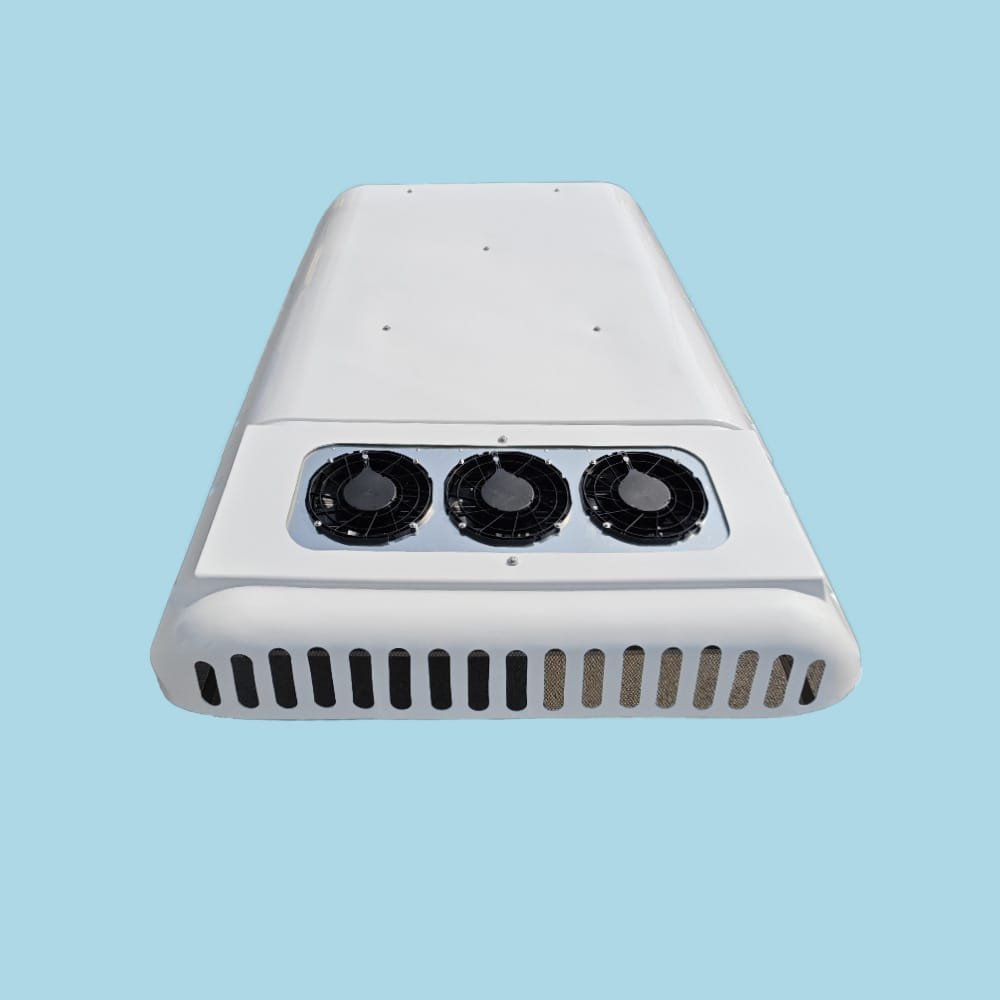

 Model EKTD-03
Type cold and warm
A/C Type forward into the wind
 Drive type electric
Rated cooling capacity 16KW
Heating capacity 14KW
 PTC Heating capacity 10KW(Optional)
Roof unit size LxWxH(mm) 2100*1640*290
weight ≤150Kg
Refrigerant R407c
High voltage range DC380V~DC750V
Electric power ≤6KW
Control voltage DC24V (20V-32V)
 Voltage conversion Air conditioner comes with 2KW DC-DC
Precharge module Air conditioner with
compressor precharging circuit
Insulation characteristics ≥20MΩ
(when the system is running)
 Grounding resistance ≤0.1Ω
Compressor DC vortex
 Expansion valve electronic
expansion valve (Danfoss)
 Blower Brushless fan
 Evaporator Air flow 4000m3/h
 Evaporator core Copper tube aluminum sheet
 Fan Brushless fan
 Condenser air volume 6000m3/h
Condenser core Copper tube aluminum sheet
Control panel Digital display
 Control mode CAN control
