Snewang truck refrigeration unit SR580T is specially designed for traditional oil-fired refrigerated truck, which suitable for box volumes of 16-22m³, with a temperature range of -18℃~+15℃. The product has the advantages of strong refrigeration capacity, lightweight design, accurate temperature control and double-drive power for the unit. Reliable compressors, control valves, and electrical components increase the service life and stability of the unit.

---

Technical parameter

model		SR580T
Applicable volume		16-22m³
Temperature range		-18℃~+15℃
Refrigerating capacity	0℃/+30℃	5850
	-18℃/+30℃	2980
Refrigerant		R404
Refrigerant charge		2.5kg

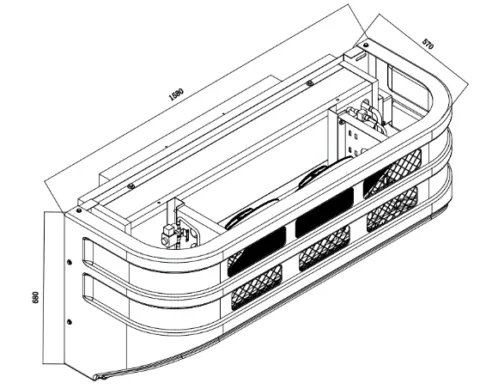

All-in-one assembly	Size mm (length * width * height)	1850*570*680
	Weight (kg)	82
Condensing fan	Quantity	2
	Total air volume	4000m³/h
Evaporation fan	Quantity	3
	Total air volume	3600m³/h

































Note: Voltage is optional

---

Snewang Small Van Refrigeration Units Product Features

1. The evaporator adopts aluminum alloy shell, high strength and corrosion resistance;
2. The condenser shell is made of ABS thermoplastic environmentally-friendly material, environmentally-friendly and recyclable, bright appearance and good performance.
3. The heat exchanger’s large volume and High-volume air supply, ensure efficient heat exchange capacity and sufficient cold delivery;
4. The controller utilizes light-touch temperature and airflow adjustment, has a wide range of temperature adjustment (-25°C to +30°C);
5. Industry-unique double sealing technology, system leakage is less than 3 g/year, long-term reliable operation without leakage;
6. The electric control system has multi-channel detection, multiple protection to ensure that the control system is safe and reliable;
7. U.S. AMP/Delphi waterproof connector, pulling force greater than 180N/M, sealing waterproof, eliminate poor contact, thicker wire, high temperature does not heat;
8. Danish Danfoss (DANFOSS) control valve, precise control, low failure rate;
9. After-sales service quick response, more than 380 service outlets nationwide for easy maintenance.

---
